Order Code: SKR-0249
Article Number: 1.302474
PRO Light USB AC45PD - World

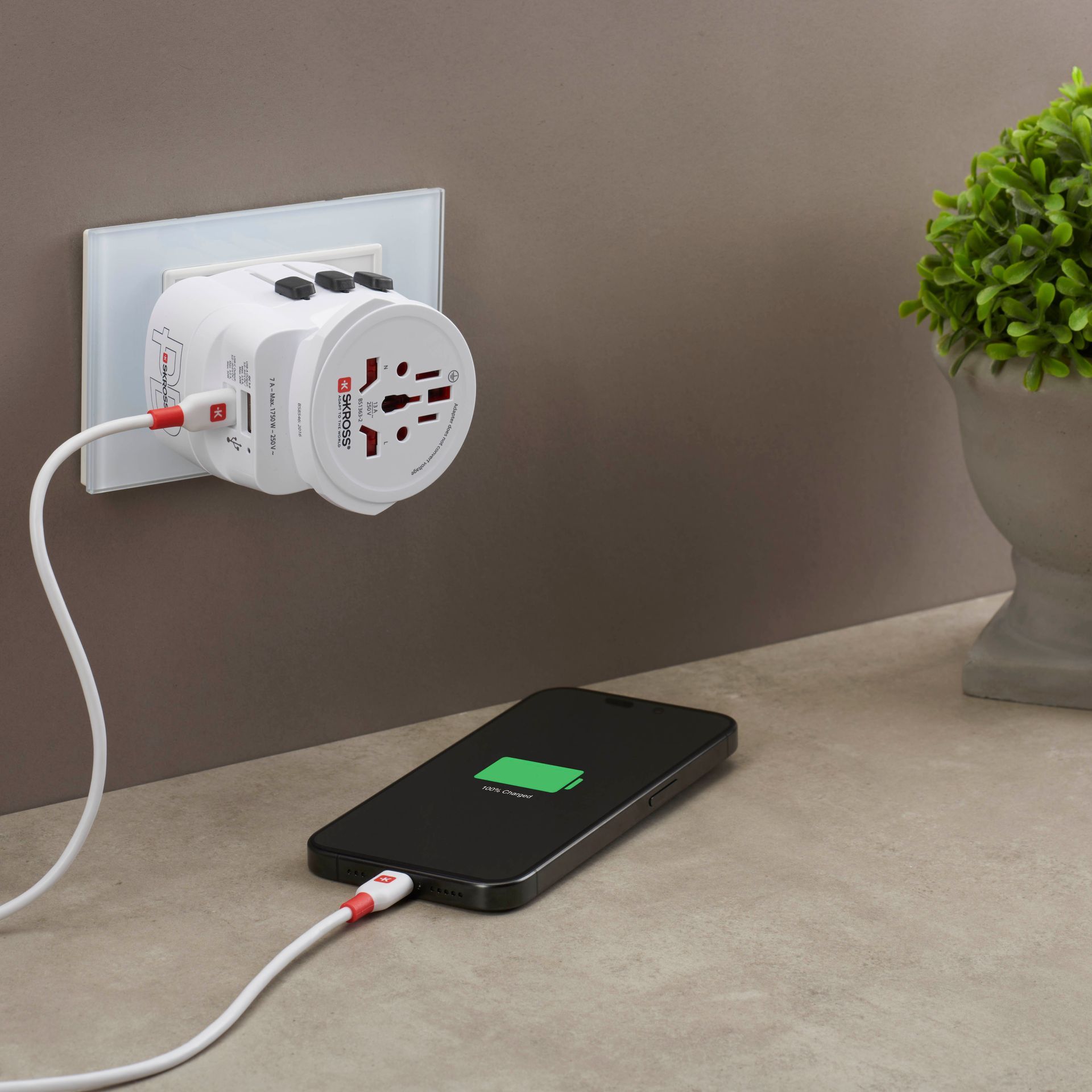

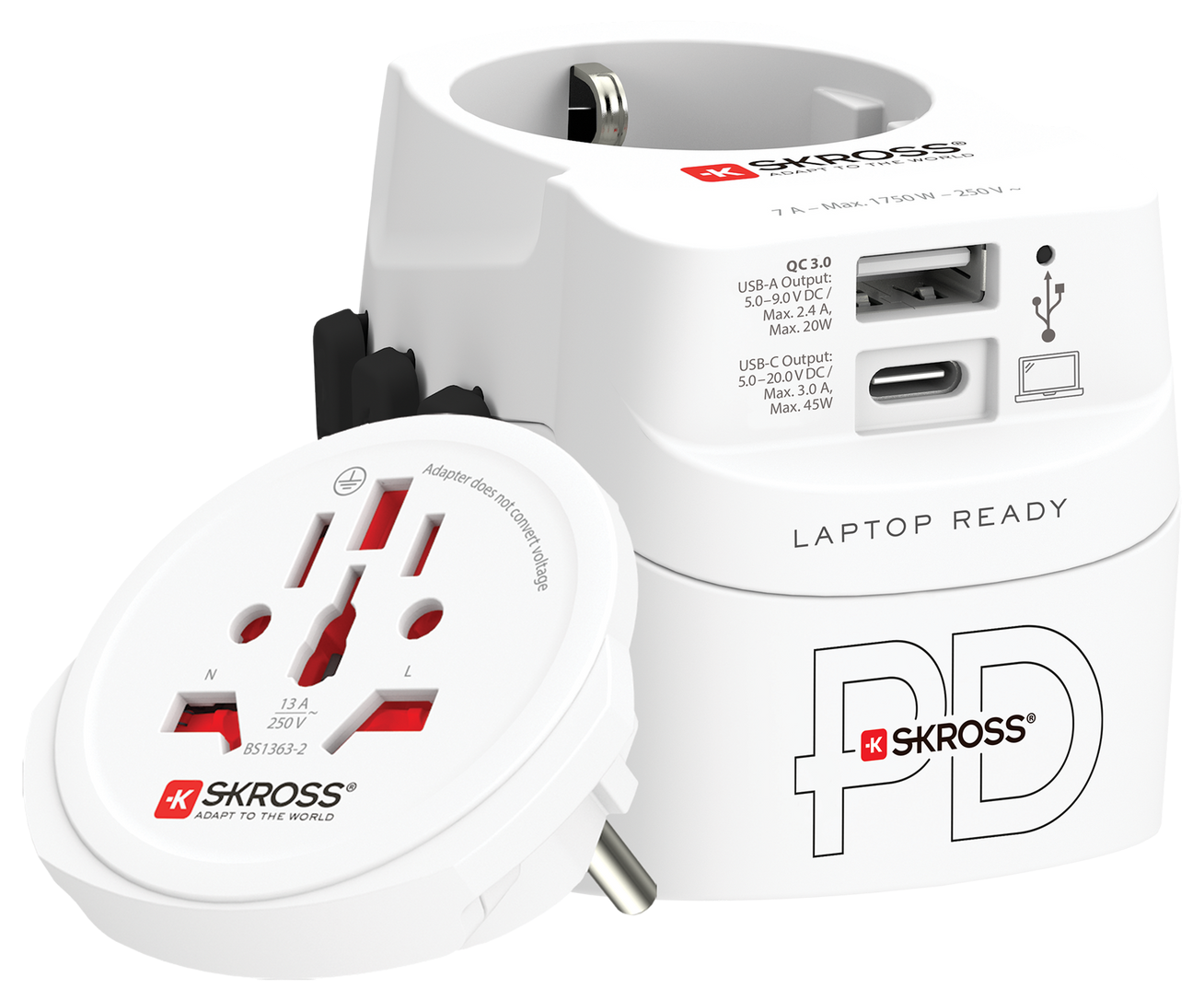

The compact 3-pole world travel adapter with integrated fast charging PD USB charger (1 x USB C & 1 x USB). Charge 3 devices at once, including your laptop via high powered PD USB C port.
Suitable even for powerful devices such as laptops and travel hairdryers
Applicable worldwide: USA, Australia, China, UK, Japan, Brazil, European countries such as Austria, Belgium, France, Germany, Greece, Spain, Portugal, Slovakia and in more than 200 other destinations. For details, please check our country coverage list
The top can be used separately in most European countries
The two USB ports (USB & USB Type-C) enable to charge two USB devices at the same time while the adapter can be used with an earthed device
Technical Specifications
- Designed in Switzerland
- Suitable for equipment with earthed & unearthed plugs (2- & 3-pole)
- Input plugs: Switzerland, Italy, Brazil, UK, USA/Japan, Australia/China, Europe (Schuko & 2-pole Euro)
- Output plugs: USA, UK, Australia/China, Europe (Schuko)
- Input voltage: 100 – 250 V AC, 50/60 Hz
- Max. load: 7 A
- Power rating: e.g. 100 V AC – 700 W / 250 V – 1750 W
- Replaceable fuse: T 7 A
- 1 x Type-C USB Output: 5.0 V DC / Max. 3.0 A, Max.15.0 W, 9.0 V DC / Max. 3.0 A, Max. 27.0 W, 15.0 V DC / Max. 3.0 A, Max. 45.0 W, 20.0 V DC / Max. 2.25 A, Max. 45.0 W
- 1 x Type-A USB Output: 5.0 V DC / Max. 2.4 A, Max. 12.0 W, 9.0 V DC / Max. 2.22 A, Max. 20.0 W
- Double Port Output (A + C): 5.0 V DC / Max. 4.8 A, (24.0 W) shared
- Average active efficiency: 89.9 %
- Efficiency at low load (10 %): 80.0 %
- No-load power consumption: 0.05 W
- Does not convert voltage
Packaging
Weight
- Adapter: 256 g
- Adapter + packaging: 338 g
Dimensions
- Adapter incl. top: W 65 mm H 68 mm D 77 mm
- Adapter + packaging: W 103 mm H 110 mm D 72 mm
Packaging Unit
- Master carton retail: 20
- Dimensions master carton retail: W 215 mm H 236 mm D 380 mm
- Pallet retail: 1400 pcs
Standard Colour
- White
Country Checklist
Which power sockets can I plug into this travel adapter into?
Attention!
Not suitable for 2-pole (unearthed) sockets (e.g. in Japan)
What can I plug into this travel adapter?
